Pack Calculation Pro

Latest version

v5.5.6 (Sep 4th, 2024). See below for instructions how to obtain latest version, and how to obtain licenses.

Introduction

Whether you are retrofitting an existing refrigeration or heating system, or creating a new system from scratch, Pack Calculation Pro can provide a thorough comparison of different solutions.

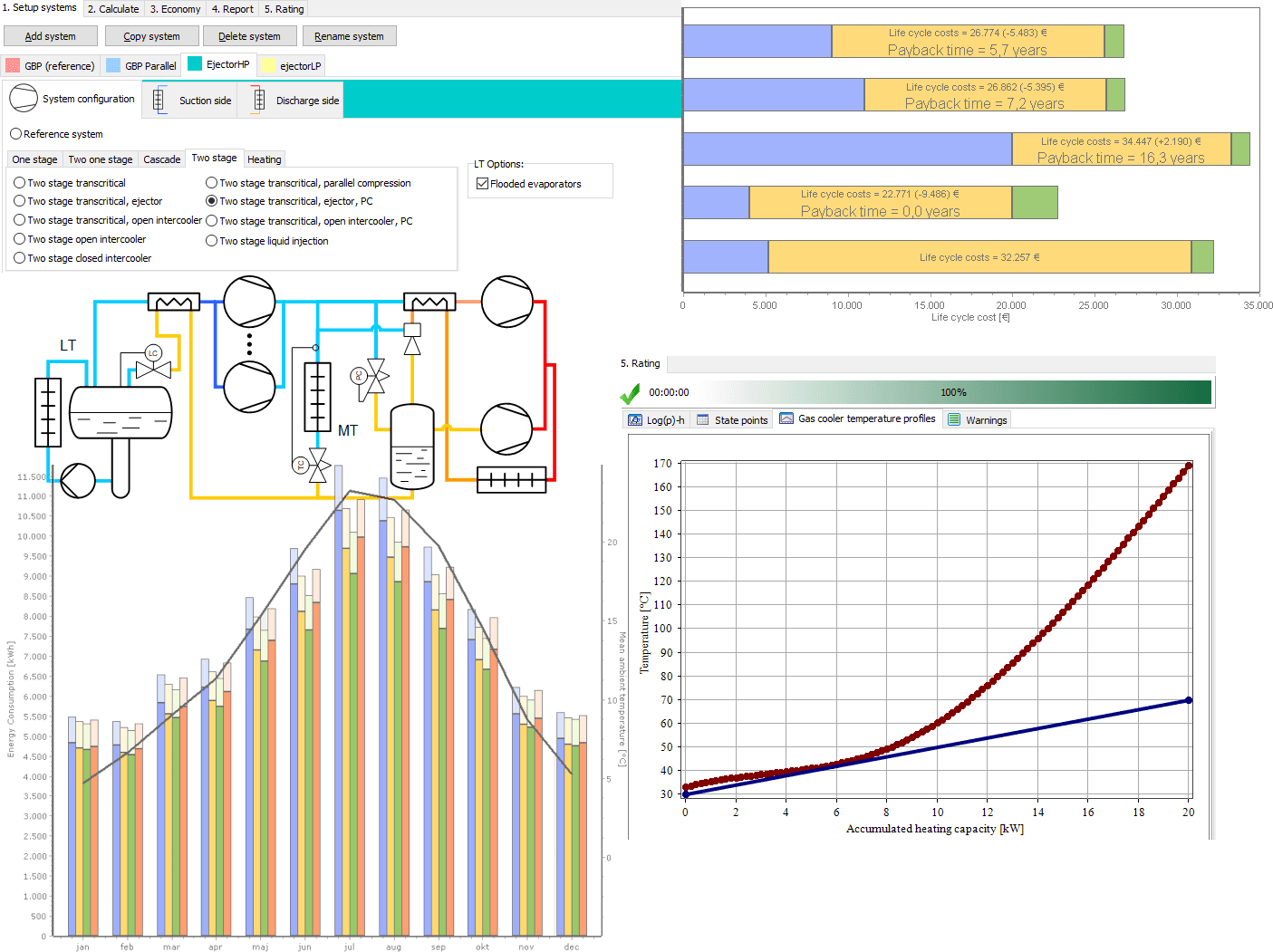

Pack Calculation Pro is designed to compare different system designs, control strategies and refrigerants for your refrigeration or heat pump project, by calculating yearly energy consumption, as well as Life Cycle Costing (LCC) and Total Equivalent Warming Impact (TEWI).

We kick-start your calculations by reducing the amount of data you should provide, among others by using load profiles and weather data to calculate the performance. We select well-proven default values for most coefficients and parameters, though you can always customize the preferences, and import your own load profile data, to meet your specific needs.

Our comprehensive database of real compressors, maintained in cooperation with OEMs, makes it possible to compare performance of different products using a single definition for the operating conditions.

Get Pack Calculation Pro

For commercial use, and to enable all features, an annual subscription license must be purchased.

• You can start your Pack Calculation Pro subscription through MyCommerce Share-It.
  • Available payment methods depend on currency and billing country.
  • Recommended billing currency: EUR
  • Typical payment options: Credit card, Paypal, Purchase Order, Bank/Wire transfer.
• You can generate a quote yourself if needed, by selecting the “Request Quote” option.
• Check out MyCommerce’s FAQ for many sales related questions

For a full overview of licensing options, especially for personal or educational use, for resellers, please visit https://www.ipu.dk/pack-calculation-pro-license/.
For other sales-related questions, please contact IPU software support.

Please note that from version 5, personal use requires registration. See activation instructions for personal use.

You can cancel a running subscription by clicking the cancel link in the order confirmation e-mail, by contacting MyCommerce shopper support, or by contacting IPU software support. German users can also cancel their subscription using this form at MyCommerce Share-It.

Download Pack Calculation Pro

Download Pack Calculation Pro – v5.5.6 (Aug 21st, 2024)

For a full overview of recent changes, check the release notes, as well as the user’s manual (v5.5).

If you need further information, or need an older version, please get in touch at ipu.freshdesk.com.

v5.5.6 (September 4th, 2024):

• Rename backup heater to auxiliary heater
• Auxiliary heater changeover temperature vs. parallel operation
• Stability improvement for solving for 100% fan capacity in some cases

v5.5.5 (August 21st, 2024):

• Fix display of rating points results for single-stage systems
• Improve loading/saving of settings for backup heater
• Additional calculation results for heat pumps with/without auxiliary boiler

v5.5.4 (June 12th, 2024):

• Fixes and improvements to file loading/saving algorithm for project and profile data.
• Replaces v5.5.2, which was not functional for new installations

v5.5 (June 3rd, 2024):

This version introduces lots of new functionality and data:

• Cycle designs:
  • Heat pumps:
    • One-stage transcritical heat pump model, with water-cooled gas cooler.
    • Auxiliary boiler for heat pumps, or standalone boiler system / district heating connection.
  • Refrigeration: Two-stage transcritical with open intercooler, with/without parallel compression.
• Components:
  • Condenser models: Improved model for hybrid cooler / adiabatic gas cooler.
  • Pre-release: Water-cooled evaporator, allowing for custom source temperature profile.
  • Full update of Bitzer product catalogue.
  • Full update of Bock product catalogue.
  • Dorin: Larger CD600 models, and LSPM motor models.
  • Frascold: Full update of hydrocarbon compressor data. SRC, CX, FVR series.
• Control options:
  • Transcritical operation of gas cooler fans can now be estimated at part load. Transition zone of gas cooler control now also slides fan control approach.
  • Pre-release: Limit on potential/available cooling capacity for heat pumps.
• Improvements for water consumption / rainwater tank calculation tool, now respects unit system.
• Rating points UI extended:
  • Pre-release: Displaying state points and log(p)-h diagram for most single-refrigerant systems.

v5.3 (Jan-Nov 2023):

Download Pack Calculation Pro – v5.3.10 – (Nov 6th 2023)

• Rating points UI added – now possible to calculate at user-specified part load conditions
• More ejector cycles added:
  • Two-stage transcritical ejector with/without parallel compression
  • One-stage transcritical ejector with parallel compression
• Now supporting auto-generated generic compressors with fixed efficiency for all cycles, allowing to do rough initial calculations before choosing compressors
• More than 1800 new Dorin compressor polynomials from CD, CDS, H, HEX series
• Many stability and accuracy fixes.. see release notes for more information
• New loading screen

v5.2.5 (May 2022):

• Fix crash during plotting, when heat pump unable to resolve evaporation temperature
• Fix two bugs causing over-estimated power consumption for parallel compressors, especially at low parallel pack capacity
• Fix crash when using free cooling on 64-bit version
• Fix to selecting multiple R1234ze(E) compressors in pack

v5.2 (March 2022):

• Add ‘One-stage transcritical, ejector‘ model
• Add ‘Two-stage Cascade heat pump‘ model
• Frascold: Import 511 new CX and SRC compressors for R134a, R290, R448A, R449A, R513A, R1234ze(E)
• Bitzer: Import 837 new 60 Hz compressors, 365 new 50 Hz compressors, and update 472 existing 50 Hz compressors. CSH/CSW/HHK/HS/OHK/OS families
• Fix: CO(S)P calculation for heat pumps in plots and exports now based on condensing capacity – these were based on evaporator capacity until now. Now COSP values align properly with Average COP in Summary.

v5.1 (August 2021):

• Several instabilities in Cooling Tower calculations fixed, including application crashes in the 64-bit version. Only affects under-dimensioned cooling towers – so simulations that before ran without warnings will still return same results.
• Fixed unit of mWater and VAir coming from calculations, data was in kg/s and m3/s respectively, but is now in kg/h and m3/h to fit with nomenclature. Affects all simulations with cooling tower
• Bug fixes regarding simulation of variable speed parallel compressors
• Improvements to memory usage.

v5.0 (April 2021):

• Long-awaited refrigerants: R32, R448A, R449A, R450A, R513A, R1234yf, R1234ze(E)
• Automatic check for updates, which can help you keep up to date. You still have to download + install yourself though.
• Parallel compression and bypass valve can now operate simultaneously, making these simulations more realistic.

Features / Functionality

Some of the highlights of the extensive feature set include:

• Calculate performance each hour of the year (= 8760 operating points)
• Calculate rating points at specific part load operations
• Use weather data for more than 3700 cities around the world*
• Choose between many commonly used cycles
  • Refrigeration:
    • One-stage, two-stage, cascade systems
    • Variants:
      • Transcritical*, CO2 Booster*
        • Parallel compression*, ejector*
      • Open/closed intercooler, liquid injection
      • Flooded or DX evaporators
  • Heat pump:
    • One-stage subcritical
    • Two-stage cascade, subcritical*
• Use modern refrigerants* such as R1234yf and R448A
• Choose from around 13.500 commercially available compressor to build your system
  • Bitzer, Bock (GEA), Copeland (Emerson), Danfoss, Dorin, Frascold
• Calculate Life Cycle Costs (LCC)
• Get an overview of both energy consumption and carbon footprint (TEWI)
• Calculate payback time
• Switch between European and American units*
• Create reports in PDF and Microsoft Word*
• And much more!

*: Only available with professional license

The manual provides many of the calculation equations, if you would like to dive deeper and study the way things are calculated.

You can help us …

…with feedback

For maintaining and improving the product, your feedback as a user is very important to us.

• User feedback (ipu.freshdesk.com)

…with translations

If you make a translation, we will keep you informed of new versions of Pack Calculation Pro before they are released, so that you are able to update any missing translations in the new version. Please check the following page for more information:

• Translations

…with data

If you are missing specific components / compressors, or are an OEM and would like your data to be included, please get in touch.

We can help you …

…with answering your questions about Pack Calculation Pro

Visit our technical support helpdesk and browse through issues and frequently asked questions. This website is also the best way to get in contact with the right person at IPU, whether you would like to report a bug, you have a feature request or you would like to hear about the future development of Pack Calculation Pro.

…with providing tailored functionality

If you would like us to implement tailored functionality for your company in Pack Calculation Pro, we are glad to assist. Simply get in touch with any of the contacts listed below to discuss the possibilities for implementing a custom version or a modified feature for you and your company.

Read more about IPU and our services here.
